Vulcan VC55ED-240 Specs
Quantity
1/Each
Shipping Weight
695 lb.
Width
40 1/8 Inches
Depth
40 Inches
Height
68 13/16 Inches
Interior Width
29 Inches
Interior Depth
22 1/8 Inches
Interior Height
20 Inches
Amps
58 - 66 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
240 Volts
Wattage
24 Kilowatts
Control Type
Dial
Door Type
Glass
Features
Energy Star QualifiedField-Convertible (Electrical)Made in AmericaNSF CertifiedUL Certified
Horsepower
1/2 hp
Installation Type
Freestanding
Maximum Temperature
500 Degrees F
Number of Chambers
2 Chambers
Number of Decks
Double
Number of Doors
4 Doors
Number of Racks
10 Racks
Oven Interior Style
Standard Depth
Plug Type
Hardwire
Power Type
Electric
Size
Full Size
Temperature Range
150 - 500 Degrees F
Wattage (per Cavity)
12 kW
Vulcan VC55ED-240 Details
Cooking in your school kitchen or restaurant will be easier than ever with this VC55ED-240/3 double deck full size electric convection oven. This 240V, 3 phase unit offers a solid state thermostat with a 5 hour timer per oven for simple, precise control of your cooking operations, and a wide temperature range from 150-500 degrees Fahrenheit to accommodate cooking a variety of different foods.
The porcelain enamel oven interiors are both attractive and easy to clean at the end of a busy day. Plus, five nickel plated Grab-n-Go racks fit into 11 different positions per oven for ultimate interior customization. One 1/2 hp two speed fan motor per compartment recirculates heated air for fast, even cooking, and each unit features an "oven cool" switch, which is used for rapid cool down to increase efficiency and productivity at your establishment.
Two dual pane thermal glass windows encased by stainless steel door frames per oven help reduce energy consumption and keep the outside glass from getting too hot. The doors are independently operated, so you can conserve energy by only opening one at a time to load and unload products. The stainless steel front, top, and sides ensure your unit is corrosion-resistant and built for long-lasting performance. 8" stainless steel legs and a stacking kit come standard. A 240V, 3 phase electrical connection is required, but can be field converted to 1 phase.
Overall Dimensions: Left to Right: 40 1/8" Front to Back: 40" Height: 68 13/16"
Interior Dimensions: Left to Right: 29" Front to Back: 22 1/8" Height: 20"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
Certified by NSF
This item is certified by NSF to applicable standards.
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
We offer certain optional modifications for this item. If you are interested in more information for modifying this unit, please fill out this form, Special Order Request Form, and a member of our Custom Quote team will be in touch in 1-2 business days!
How do I know if the listed amperage is in reference to a single oven, or the combined total for each individual oven?
If you're ever unsure of an electrical specification and how it relates to your operation, be sure to check out the Specification Sheet or consult a qualified technician for additional information.
How will this double oven arrive? Is there anything special I need to know about setting it up?
Double deck ovens like this one will ship separately. You will need to uncrate each oven and then stack one on top of the other as part of the installation process. Consult your installation manual for details specific to the oven you ordered.
I see that this electrical unit is "field-convertible." What does that mean?
Electrical equipment is factory-set to use a specific voltage and phase for power. Field-convertible equipment allows your unit to accept another voltage or phase type, but this conversion must happen before it is used. For more information on which voltage and phase configurations are possible, check the item content and literature.
For safety reasons, we recommend having a qualified service professional perform the conversion. Your equipment’s warranty may require that such conversions be done by a professional, and failure to do so may void warranty coverage.
What is a Grab-n-Go rack?
Vulcan's Grab-n-Go racks are slightly notched in the front for easier pan access. The notch allows operators to reach into the oven and remove a sheet pan without burning their hand on the hot racks.
RESIDENTIAL USERS: Vulcan assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
Customers generally find this oven effective for various baking needs in professional settings, appreciating its ease of use and even cooking performance. Some users report durability concerns and challenges with customer service. Opinions on quality and service experiences vary.
ovens
amazing
bakes
beast
brand
bread
cardboard
chose
convection
down
This AI-generated summary was created from real customer reviews
Customers generally find this oven effective for various baking needs in professional settings, appreciating its ease of use and even cooking performance. Some users report durability concerns and challenges with customer service. Opinions on quality and service experiences vary.
ovens
amazing
bakes
beast
brand
bread
cardboard
chose
convection
down
This AI-generated summary was created from real customer reviews
Customers generally find this oven effective for various baking needs in professional settings, appreciating its ease of use and even cooking performance. Some users report durability concerns and challenges with customer service. Opinions on quality and service experiences vary.
ovens
amazing
bakes
beast
brand
bread
cardboard
chose
convection
down
This AI-generated summary was created from real customer reviews
Showing 1 of 1 review
Rated 5 out of 5 stars
Verified Purchase
Rated 5 out of 5 stars
Configuration:
Double Deck

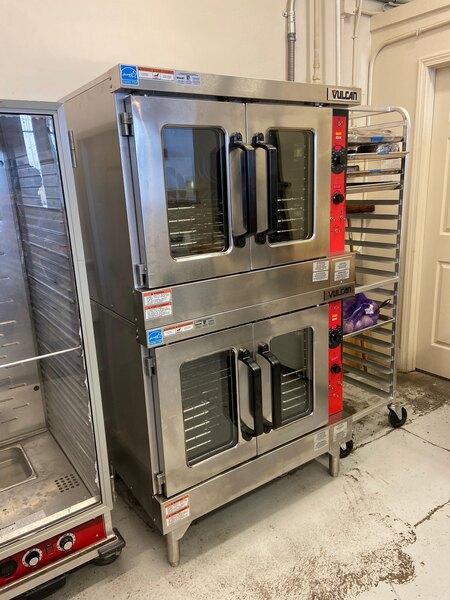

After a series of unfortunate events, we had to get a new oven and chose to upgrade. This is our first brand new set of ovens and it's amazing. It arrived on two pallets, strapped down with cardboard, so it was easy to remove and unload. It is a beast and even bakes great bread for a convection. So far, highly recommend.
